Application of Hall switch position detection in stage lighting: In some performances, the lights on the stage need to be adjusted according to the position of the actors or dancers. The unipolar Hall switch can be used to detect the position of the actors, thereby automatically adjusting the angle and brightness of the lights.

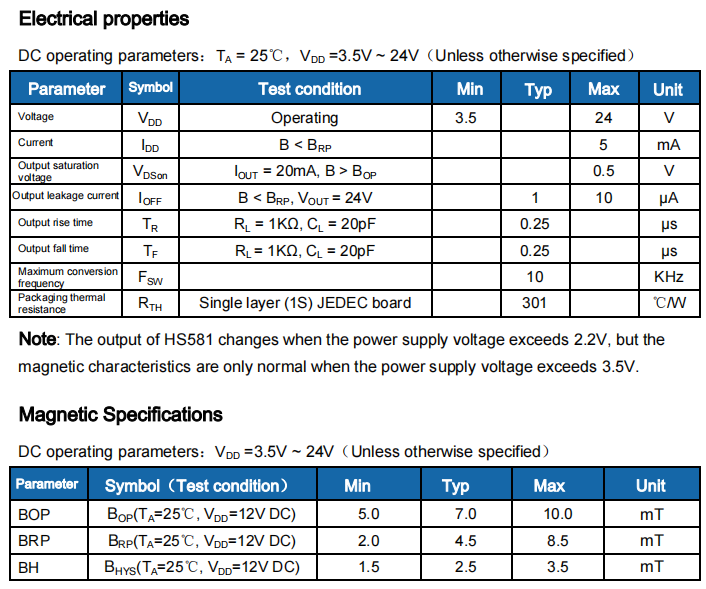

Recommended model: HS581 high-sensitivity unipolar Hall device
HS581 is a unipolar latch Hall effect sensor based on mixed-signal CMOS technology. The device integrates a voltage regulator, a Hall sensor with a dynamic bias compensation system, a Schmitt trigger and an open-drain output driver, all in one package.
This IC uses advanced chopper stabilization technology, so it can provide accurate and stable magnetic switch points. In addition to the applications listed in "Applications" below, this sensor has many other applications.
Because of the wide operating voltage and wide temperature range of the HS581, it is very suitable for use in the automotive, industrial and consumer industries.
This IC has a SOT package for surface mount and a single-row TO-92 flat package that can be directly inserted. Both 3-pin packages are RoHS compliant.
