HS211X low power consumption and high sensitivity Hall effect chip
- Product Detail
HS211X is an omnipolar magnetic switch that integrates tunnel magnetoresistance (TMR) sensor and CMOS technology and is developed for high-sensitivity, high-speed, low-power, and high-precision applications. It uses a high-precision push-pull half-bridge TMR magnetic sensor and a CMOS integrated circuit, including a TMR voltage generator, a comparator, a Schmitt trigger, and a CMOS output circuit, which can convert the changing magnetic field signal into a digital voltage signal output. The temperature-compensated power supply is provided by an internal voltage regulator, and a wide operating voltage range is allowed. It is an ideal choice for many low-power, high-performance applications with low voltage operation, 1 microampere supply current, extremely high response frequency, wide operating temperature range, and excellent anti-external magnetic interference characteristics.

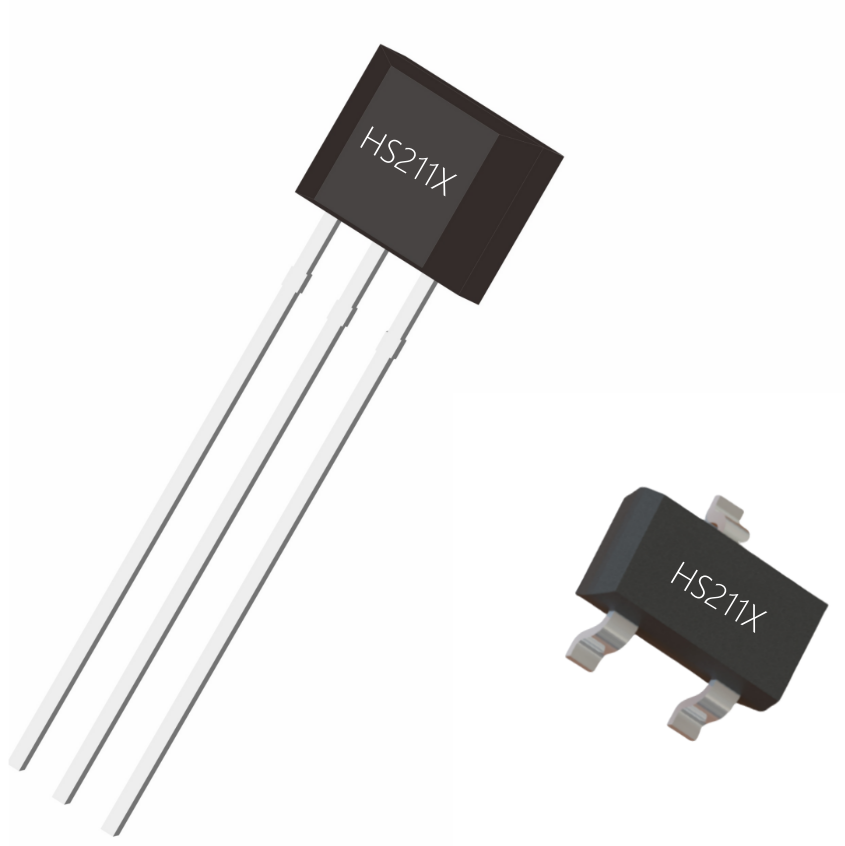

Packaging: SOT23-3 and TO-92S
Product features
2. 1.5 microamperes ultra-low power consumption
3. High frequency response up to 1kHz
4. Omnipolar magnetic switch
5. High sensitivity, low switching point
6. Wide operating voltage range
7. Excellent temperature stability
8. Excellent resistance to external magnetic fields
Main applications
1. Flow meters, including water meters, gas meters and heat meters
2. Proximity switches
3. Speed detection
4. Linear and rotational position detection
