CC6211 unipolar micro-power Hall element TWS Bluetooth headset magnetic switch
- Product Detail
CC6211 is a micro-power, high-sensitivity unipolar Hall switch sensor.
The internal circuit of CC6211 includes Hall film, voltage regulator module, signal amplification processing module, dynamic offset elimination module, latch module and CMOS output stage.
Due to the use of advanced Bi-CMOS process and the overall optimized circuit structure, the product obtains extremely low input error feedback. The product adopts dynamic offset elimination technology, which can eliminate the offset voltage caused by package stress, thermal stress, and temperature gradient, and improve the consistency of the device. At the same time, the product adopts a very miniaturized packaging process, which makes the product have extremely high performance and market advantages.

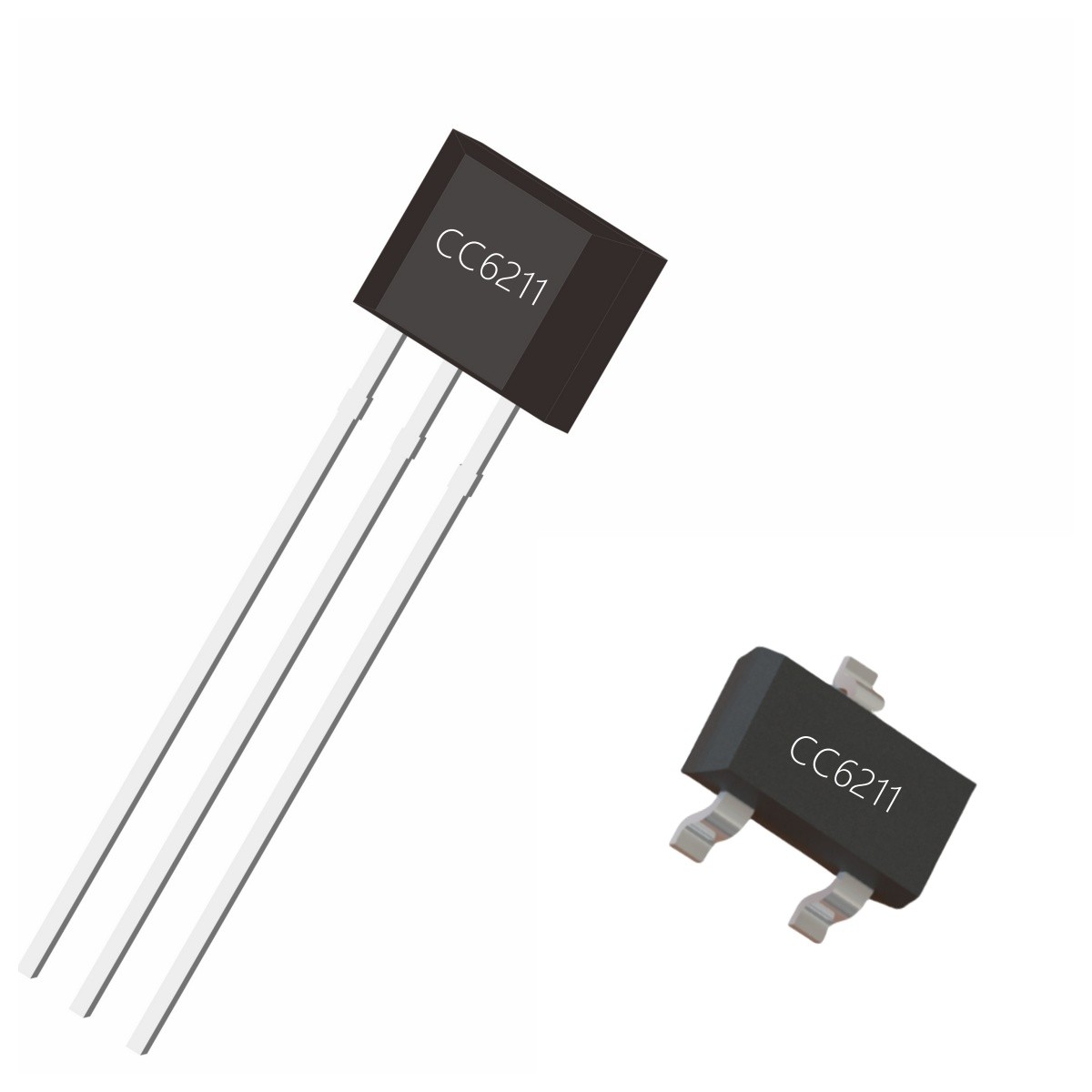

CC6211 provides three packages: TSOT23-3, TO-92S and DFN4L, with an operating temperature range of -40~150.
Product features
1.Micro power consumption
2.Fast response, operating frequency of 25Hz
3.Unipolar
4.Good temperature stability
5.Low switch point drift
6.ESD(HBM) 6000V
7.SOT23-3 and DFN4L small size packages
Main applications
1.Instruments
2.PDA
3.Laptop

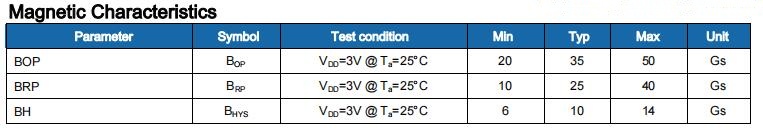

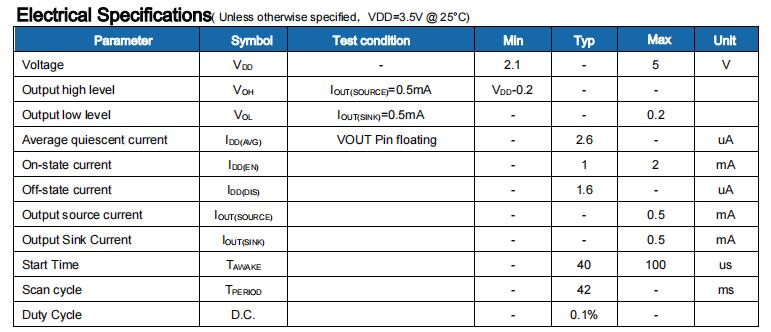

Product parameters
